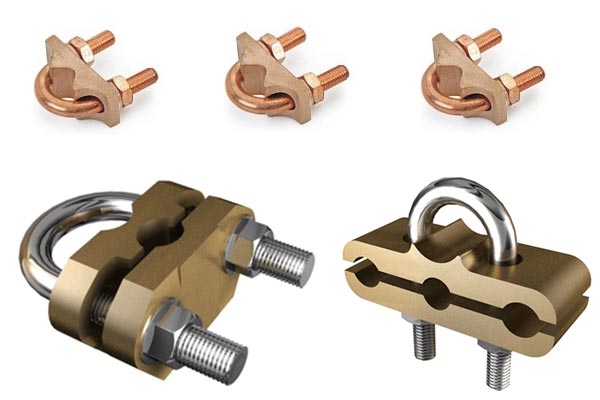

Copper U-BOLT Clamps

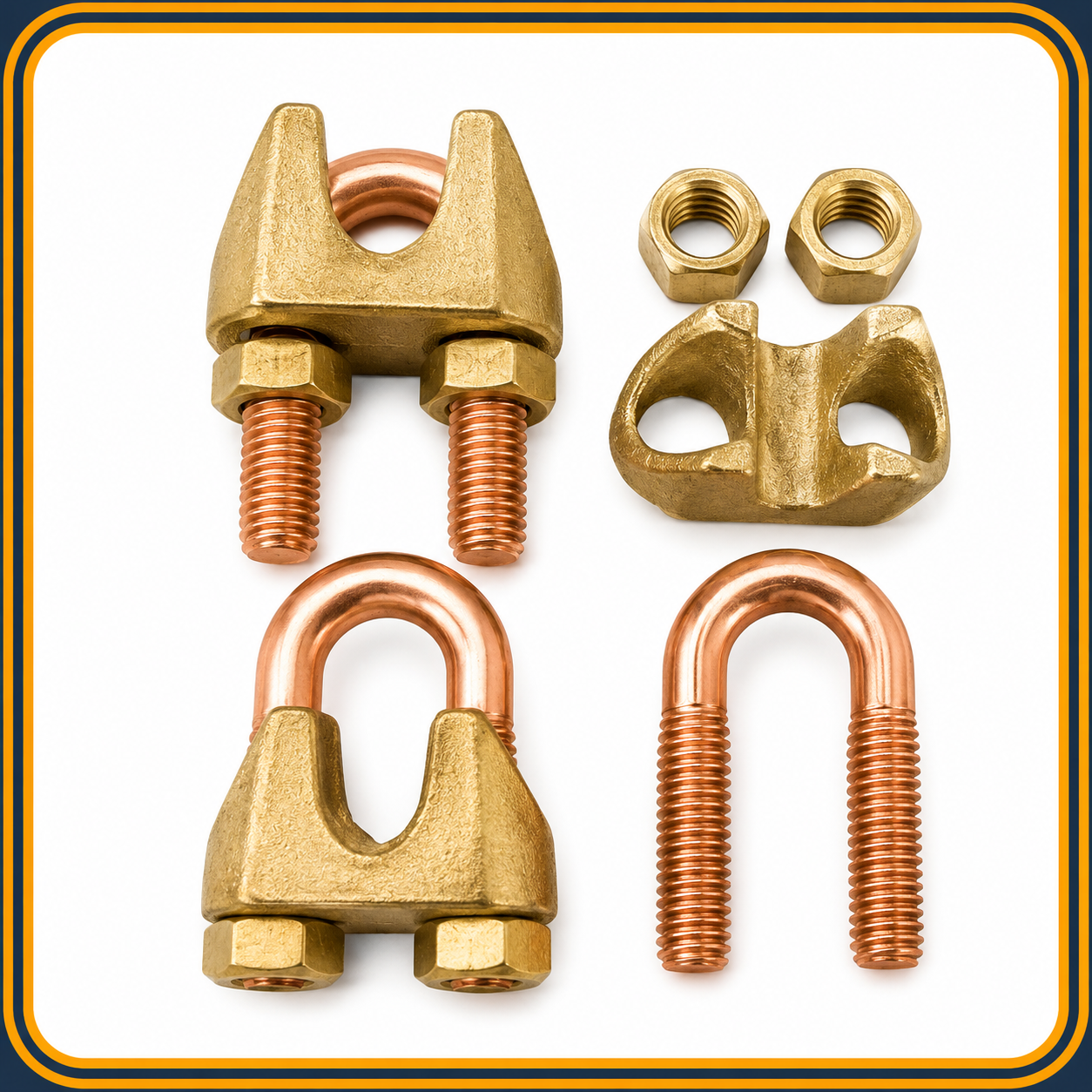

These are used to connect the solid round conductors to the grounding rod made of copper. They are constructed with high-quality Copper and Bronze hardware. A Copper U-BOLT Clamps is a metal fastener in the shape of the letter U with a pin bolt or screw bolt closure that fits over the two ends to form a closed clamp.

Material: Gunmetal and Brass U BOLT are available in copper, copper alloy, and stainless steel.

This U Bolt Rod Clamp is made of high-quality copper alloy, which provides good mechanical strength, corrosion resistance, and conductivity. The U bolt clamp is intended to create a low resistance, the corrosion-resistant connection between a flat tape or stranded conductor and an earth rod or reinforcement bar.

Application

Whether for an electrical installation or a structural lightning protection system, an effective earthing system relies on joints and connections to have good electrical conductivity with high mechanical strength. Poorly chosen or badly installed connections can compromise the safe operation of an earthing system. Where permanent connections are not appropriate, Furse mechanical clamps offer the ideal solution. This U Bolt Rod Clamp is manufactured from high copper alloy, offering excellent mechanical strength, corrosion resistance, and conductivity.

Technical Details of Copper U-BOLT Clamps

Rod DiameterØ(mm)	Tape Size(mm)	Weight(kg)
16	25x3	0.28
16	25x4	0.28
16	25x6	0.28
20	25x3	0.30
20	25x4	0.30
20	25x6	0.30
25	25x3	0.33
25	25x4	0.33
25	25x6	0.33
31	25x3	0.35
31	25x4	0.35
31	25x6	0.35
38	25x3	0.36
38	25x4	0.36
38	25x6	0.36
50	25x3	0.44
50	25x4	0.44
50	25x6	0.44

[/vc_column_text] [/vc_column][/vc_row]

Application	Clamp rod parallel to copper tape conductor
Material	Copper Alloy-BS EN 1982 U BOLT, Nut - Brass

---

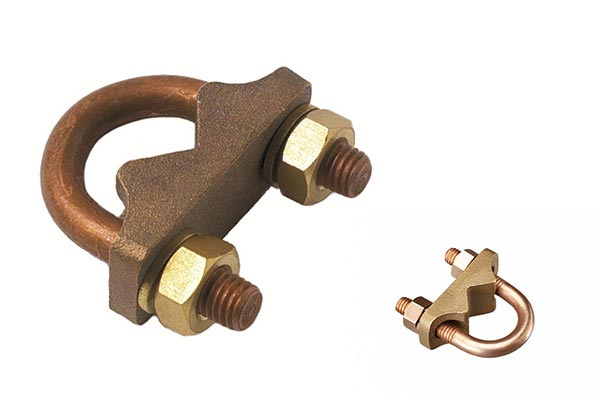

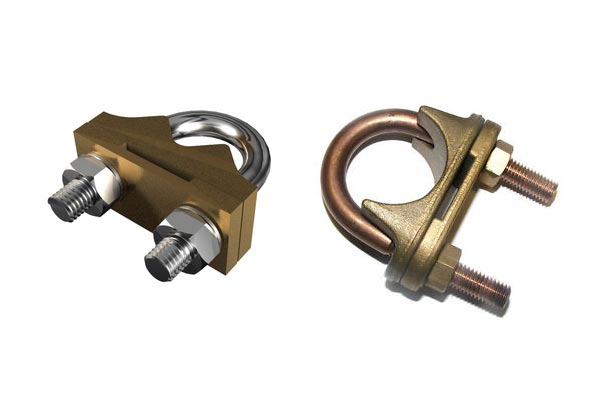

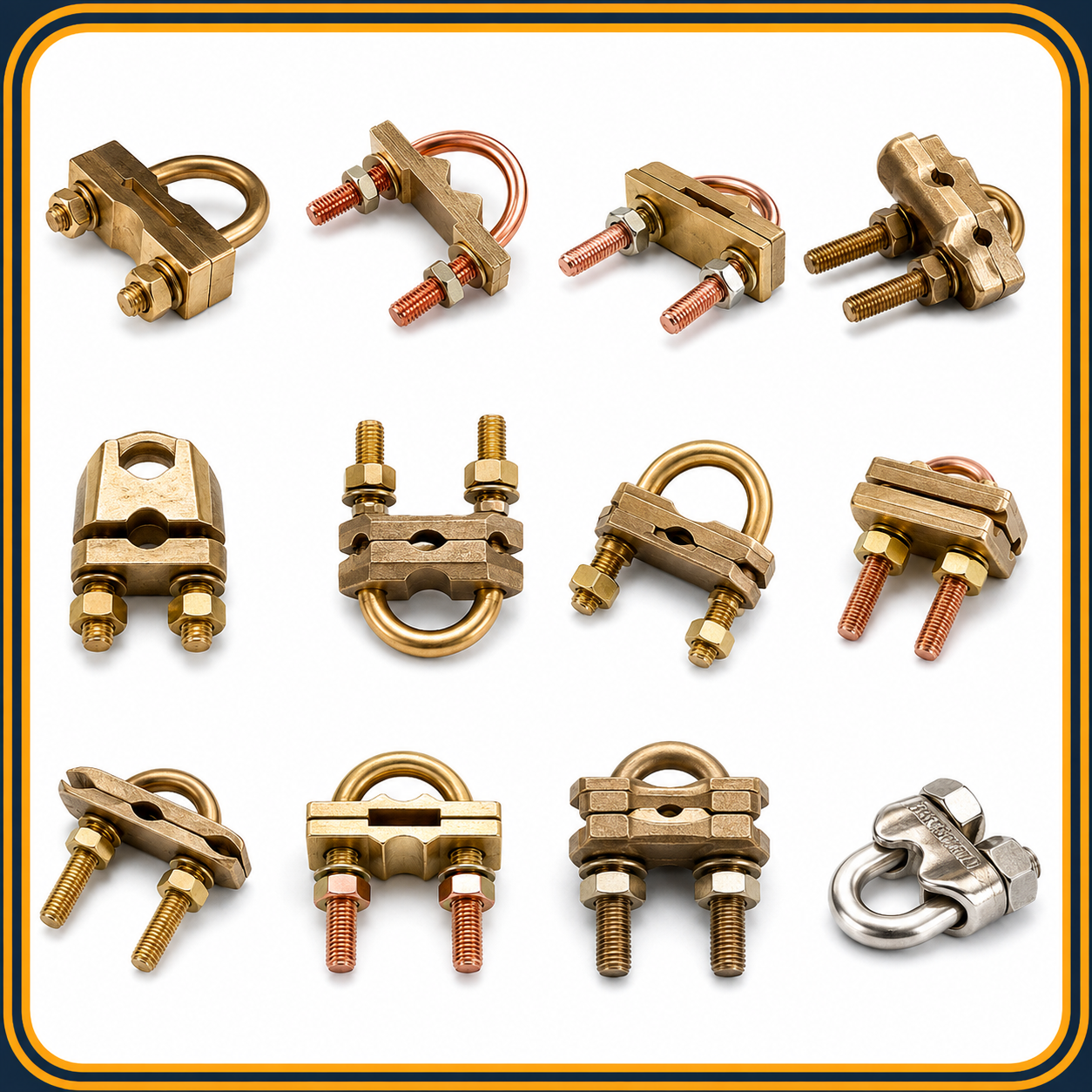

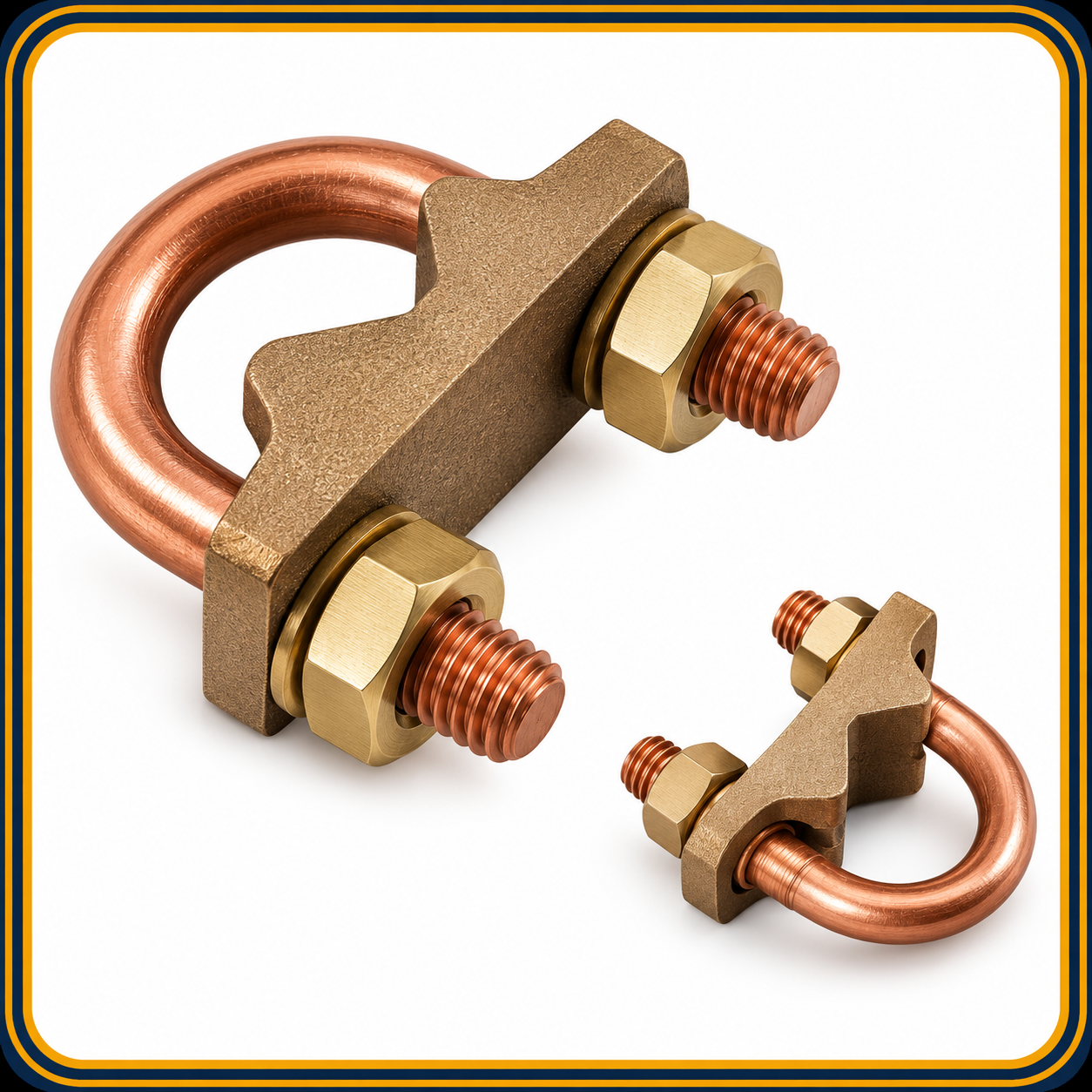

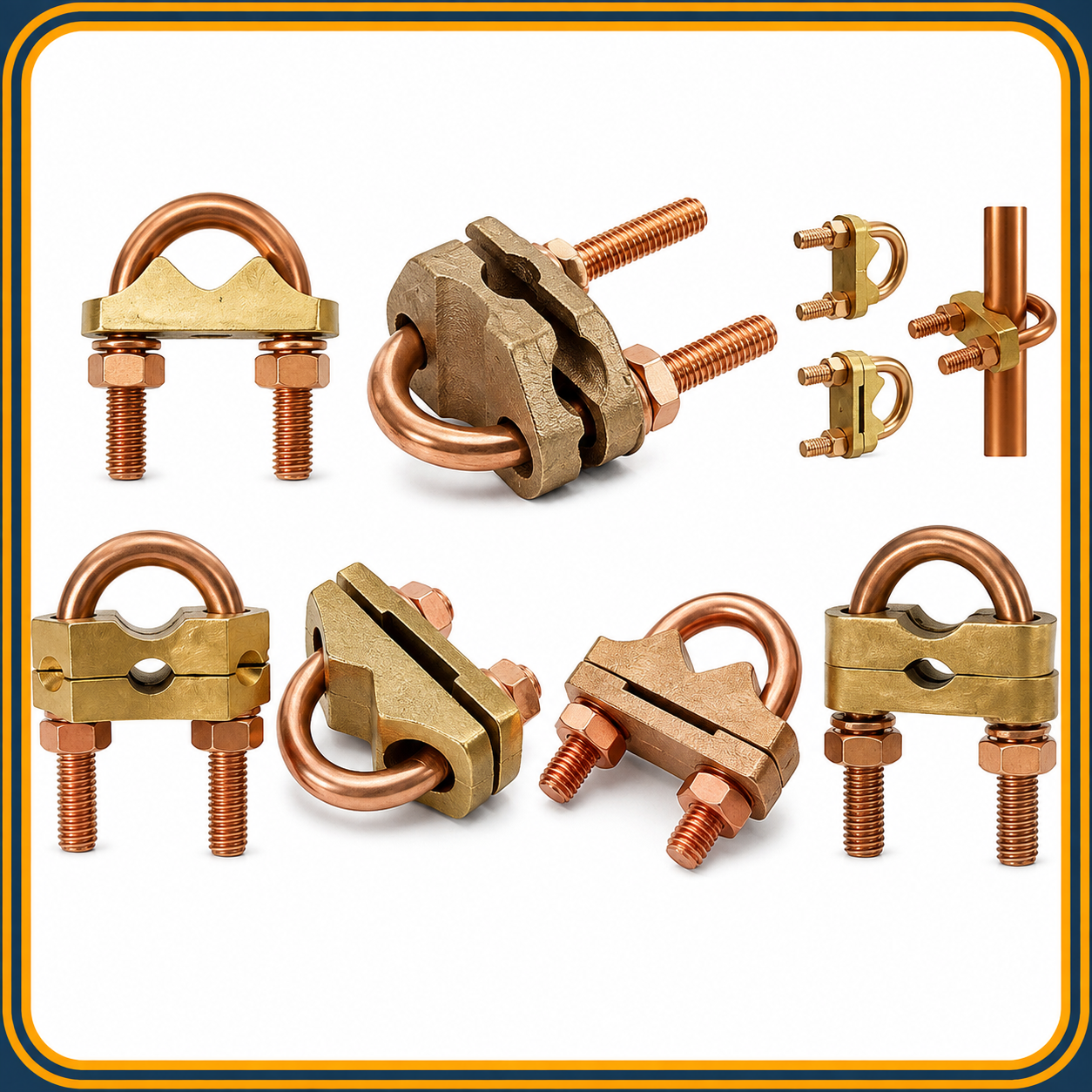

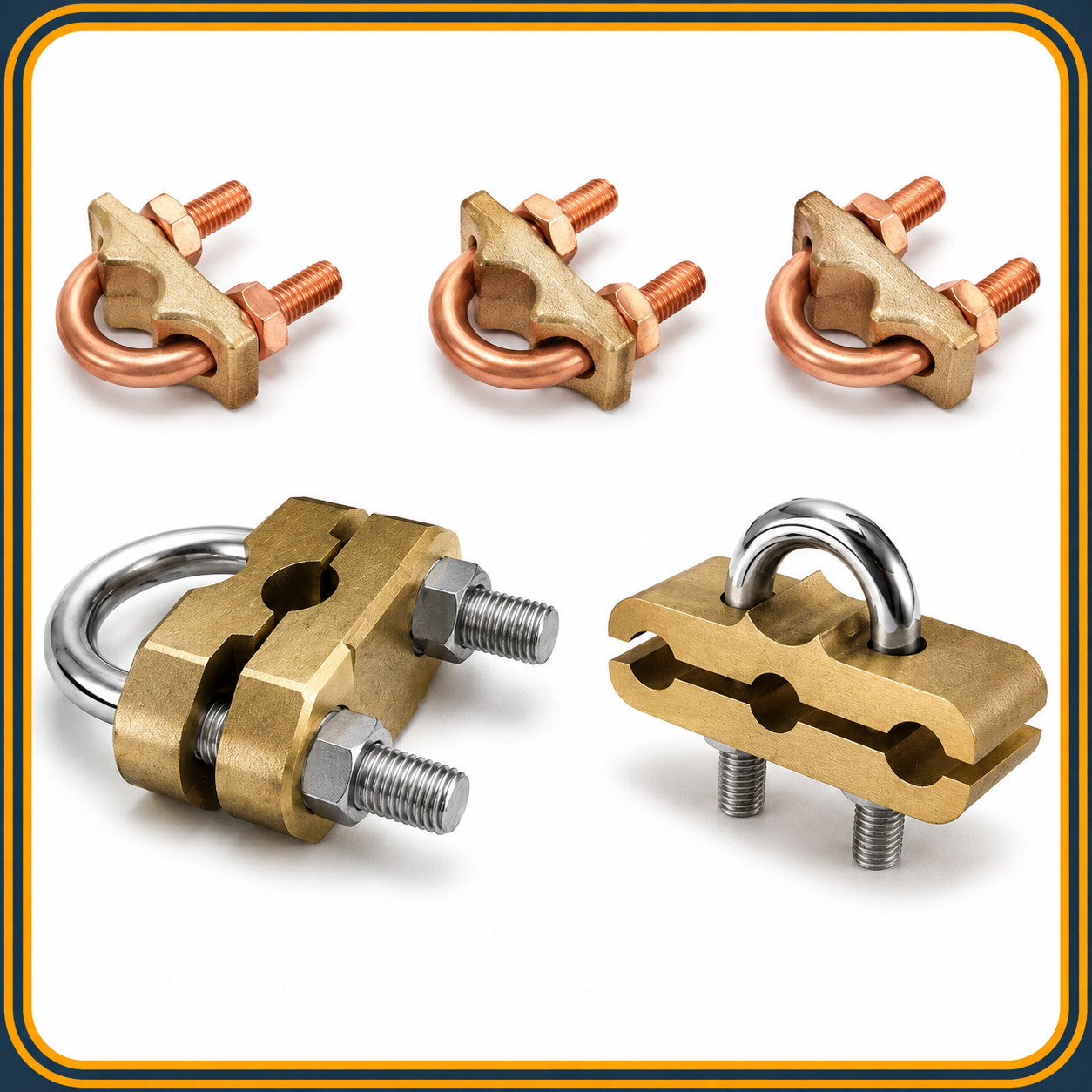

U-Bolt Rod To Cable Clamps	U-Bolt Rod To Tape Clamps	U-Bolt Rod To Cable Clamps-GUV

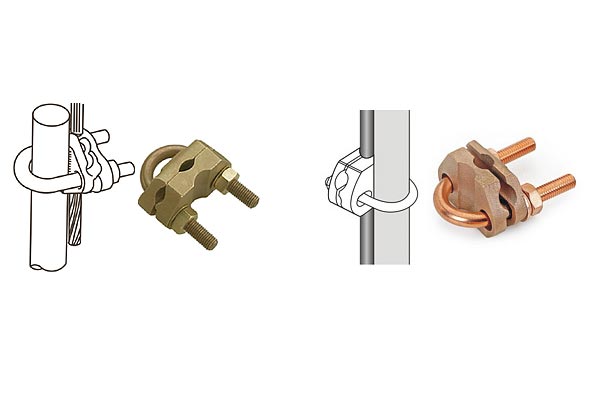

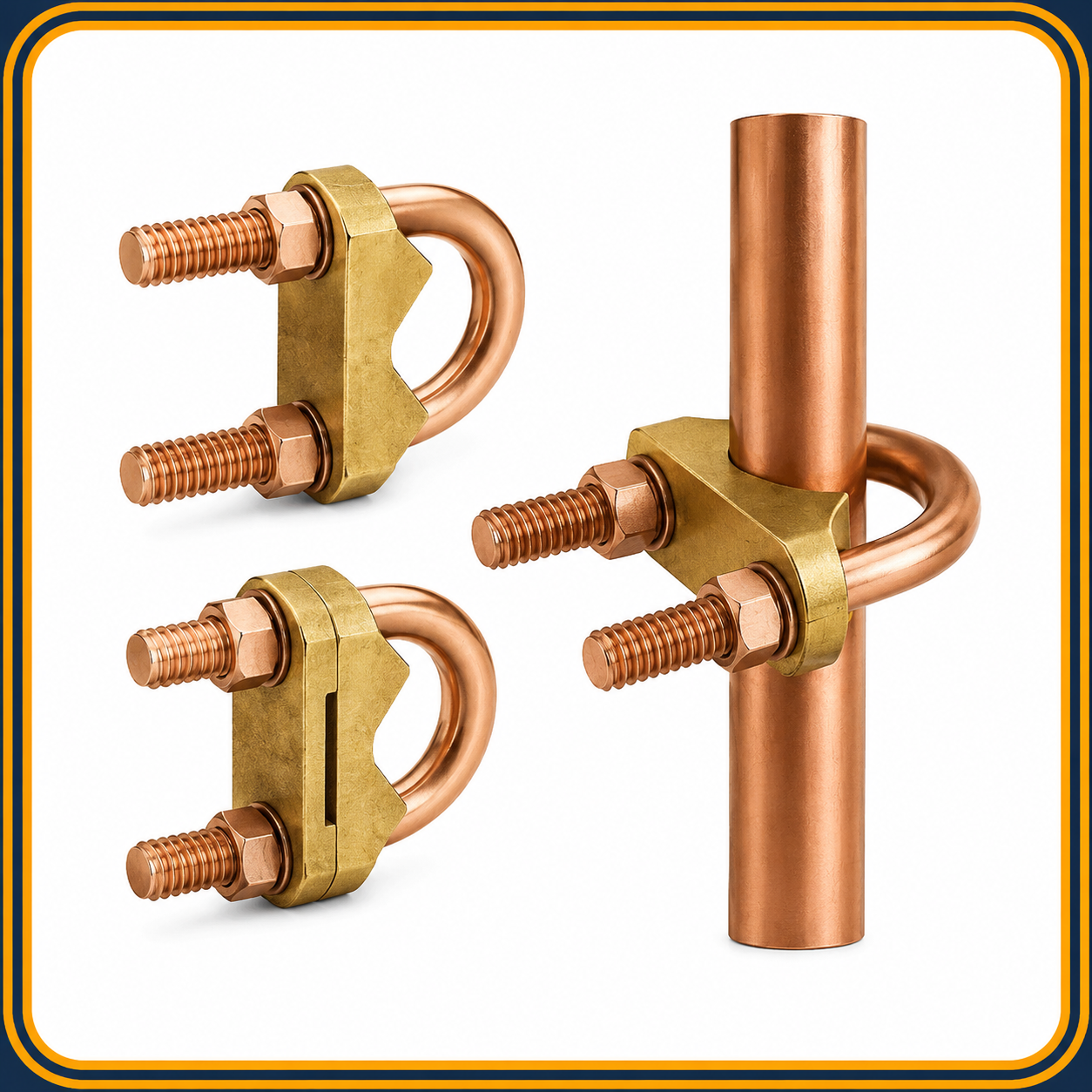

U-Bolt Rod To Cable Clamps-SCE

Sample Time: Available in 5-10 days for different items.

Drawing Format: CAD / PDF / DWG / IGS / STEP.

Packaging: Standard package, Carton box or Pallet, As per customized specifications

Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.

We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
