DIFFERENT TYPES OF Copper Bonded Earthing Rod

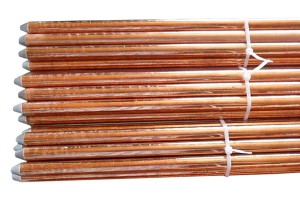

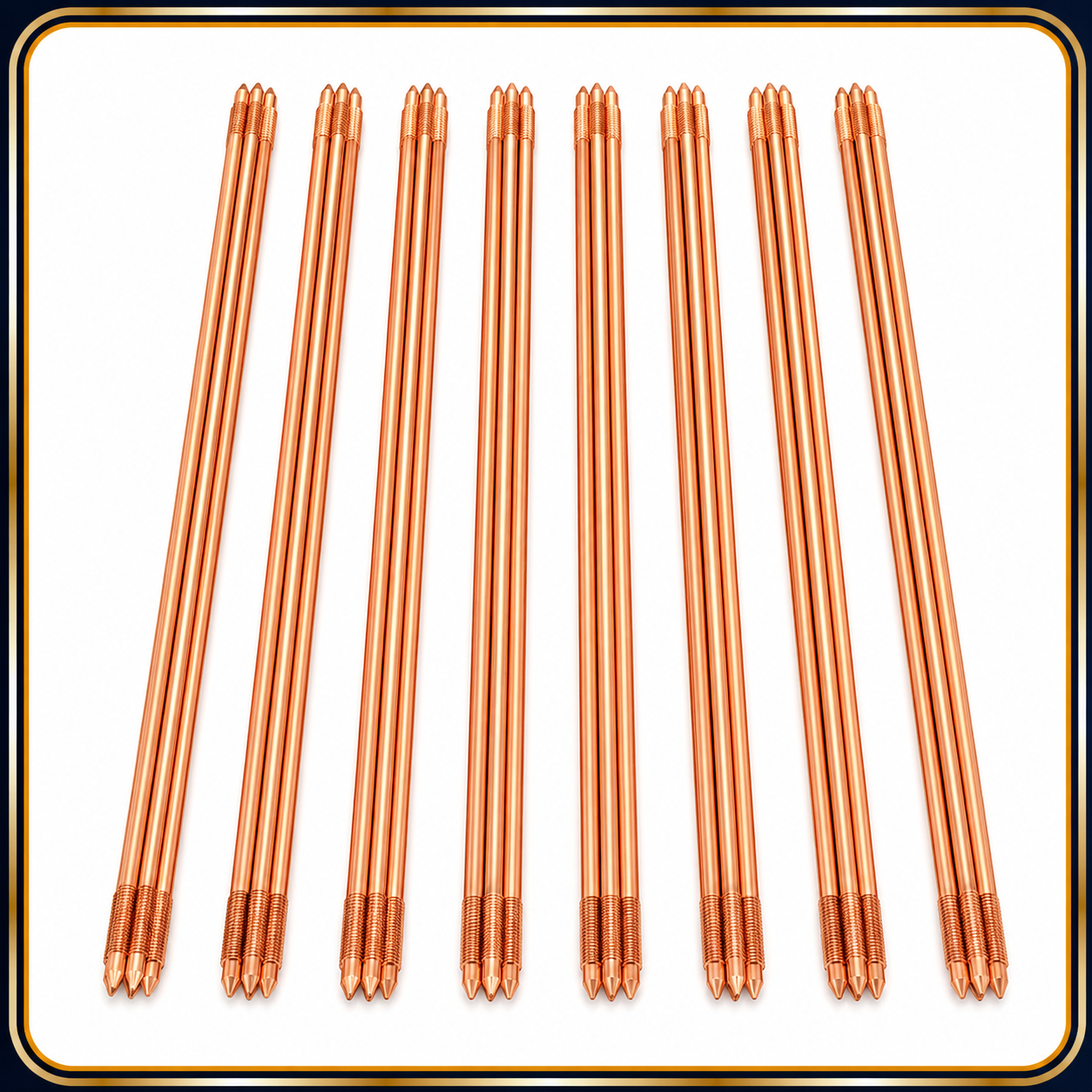

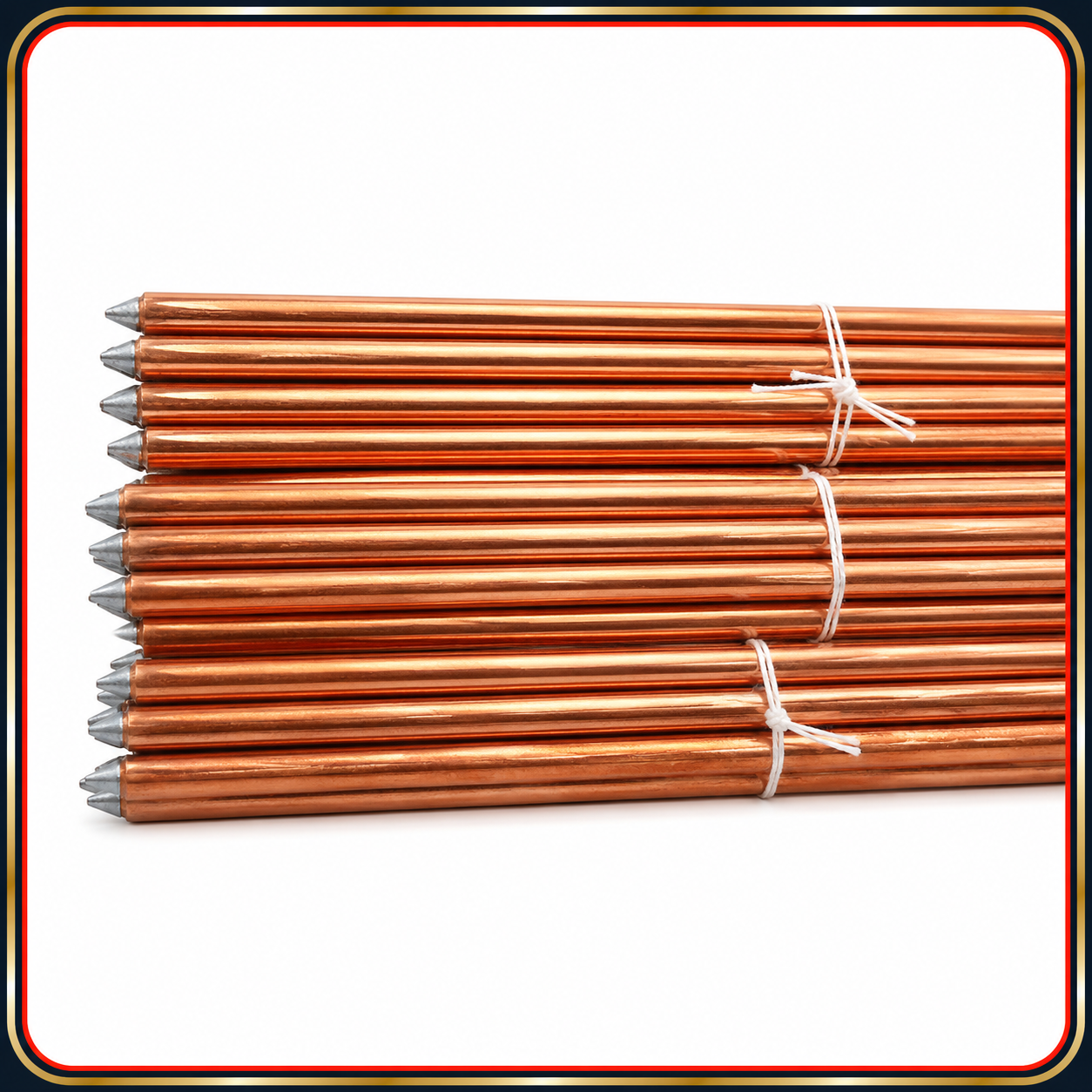

 Earth Rods with Threaded Type UL Listed |

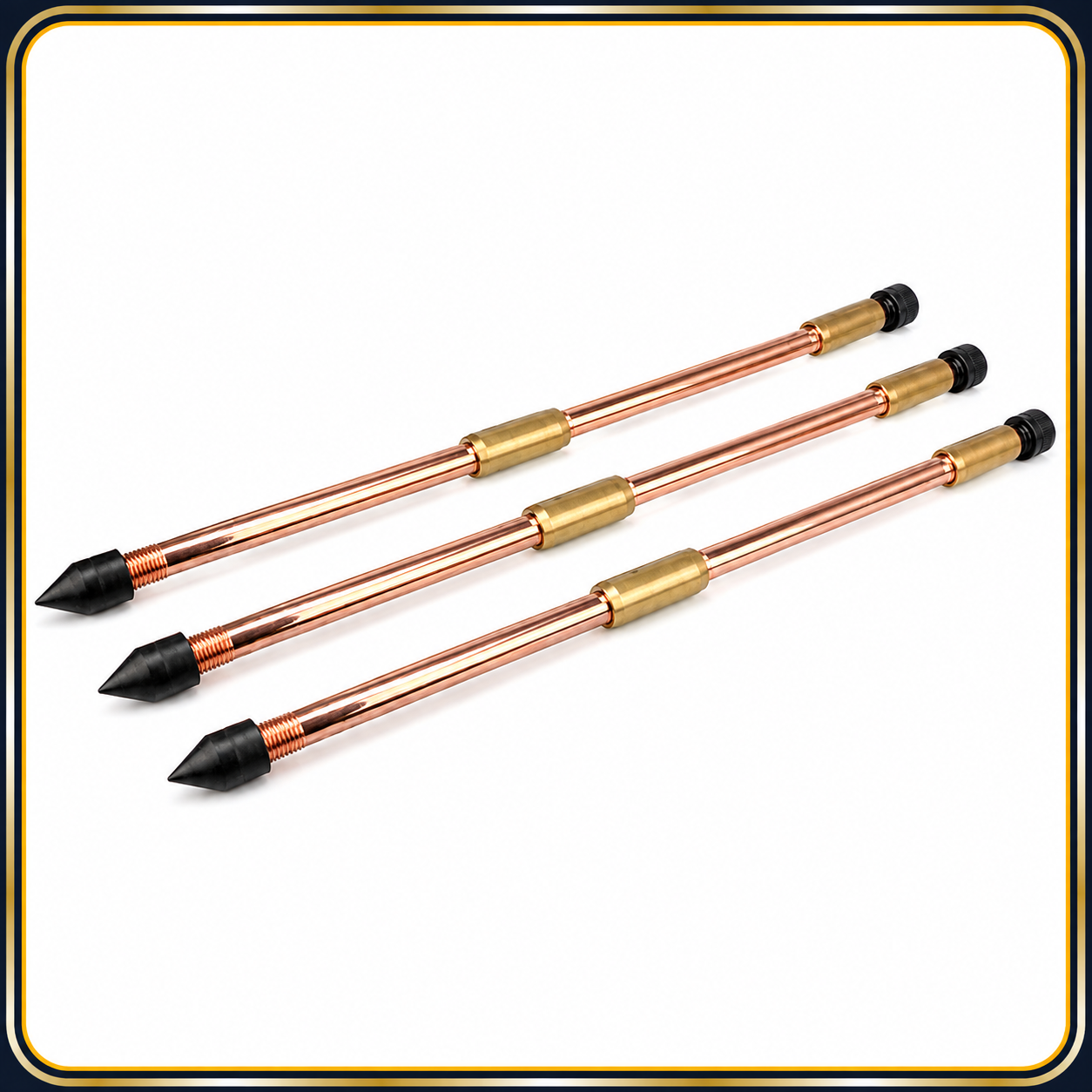

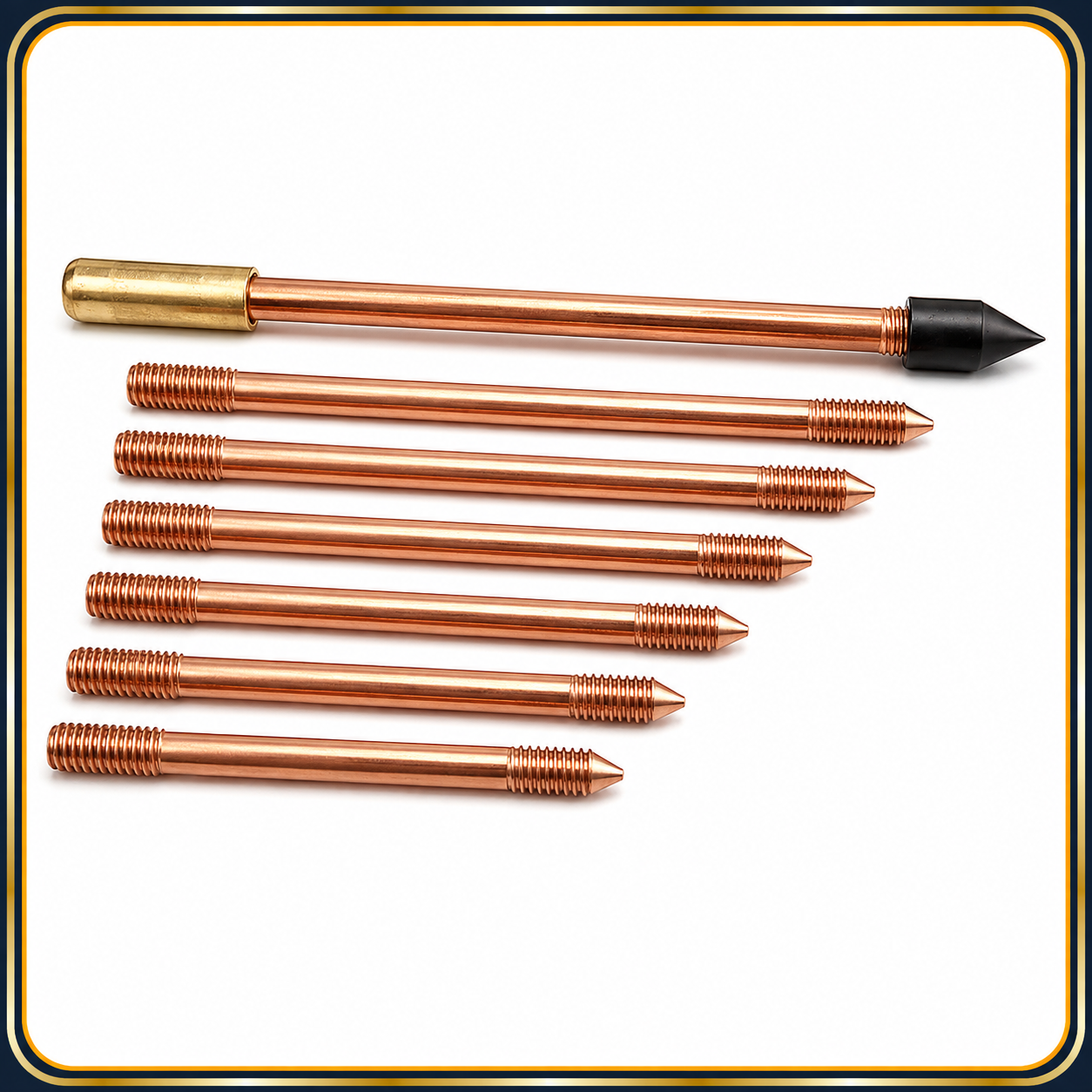

 Earth Rods with standard type UL listed |

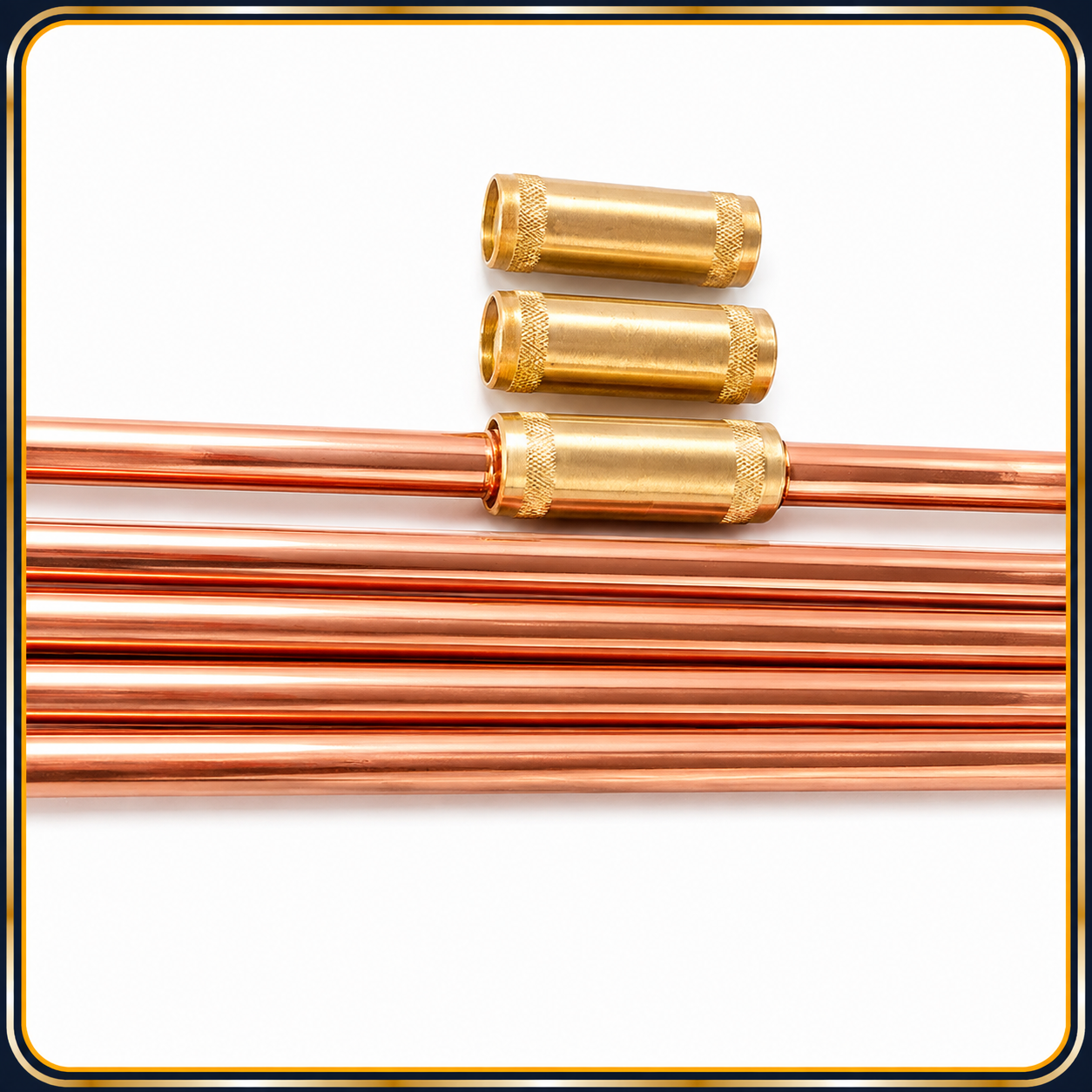

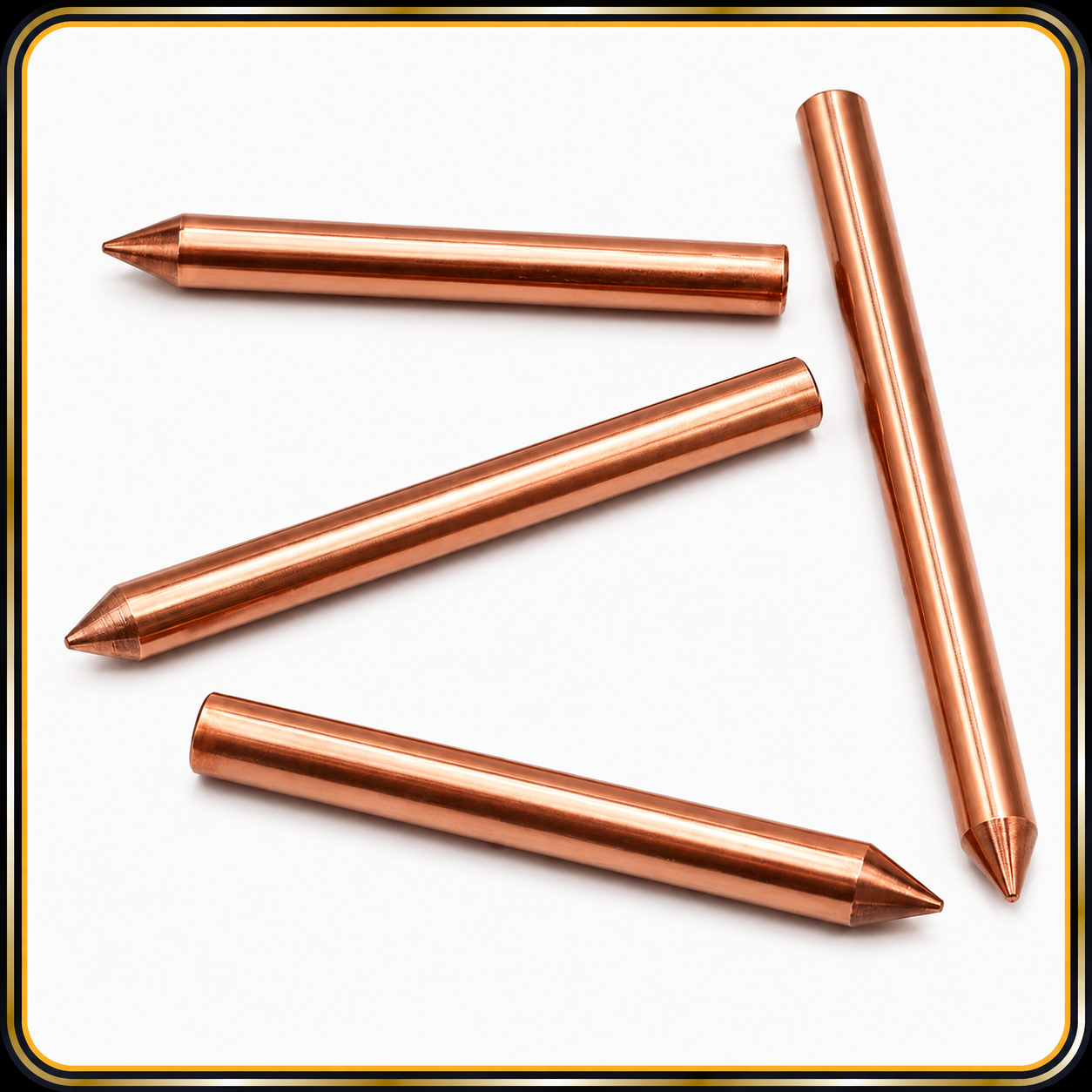

 Sectional Earth Rods |
Technical Details
| NOMINAL DIAMETER(inch) | LENGTH(mm) | THREAD DIAMETER(inch) | SHANK DIAMETER(mm) |
| 3/8" | 1200 | UNTHREADED | 9.5 |
| 1/2" | 1200 | 9/16" | 12.7 |
| 1/2" | 1500 | 9/16" | 12.7 |
| 1/2" | 1800 | 9/16" | 12.7 |
| 1/2" | 2400 | 9/16" | 12.7 |
| 5/8" | 1200 | 5/8" | 14.2 |
| 5/8" | 1500 | 5/8" | 14.2 |
| 5/8" | 1800 | 5/8" | 14.2 |
| 5/8" | 2400 | 5/8" | 14.2 |
| 5/8" | 3000 | 5/8" | 14.2 |
| 3/4" | 1200 | 3/4" | 17.2 |
| 3/4" | 1500 | 3/4" | 17.2 |
| 3/4" | 1800 | 3/4" | 17.2 |
| 3/4" | 2400 | 3/4" | 17.2 |
| 3/4" | 3000 | 3/4" | 17.2 |
